| MODEL | SCREW DIA (mm) MAIN / BABY | L/D RATIO MAIN / BABY | SCREW SPEED (r/min) MAIN / BABY | TOTAL LOAD (kW) MAIN MOTOR (kW) | PRODUCTION (kg/h) | DIMENSION L/W (mm) |
|---|---|---|---|---|---|---|
| CTS100 B125 | 100/125 | 29/1 12/1 | 60/75 | 120 30/18.5 | 125-150 | 5700/1750 |
| CTS110 B140 | 110/140 | 29/1 12/1 | 60/75 | 135 37/22 | 170-180 | 6200/1950 |
| CTS120 B140 | 120/140 | 29/1 12/1 | 60/75 | 145 45/22 | 200-220 | 6500/1950 |
| CTS125 B150 | 125/150 | 29/1 13/1 | 60/75 | 150 55/30 | 250-275 | 6950/2100 |
| CTS140 B160 | 140/160 | 29/1 13/1 | 55/75 | 200 75/37 | 300-325 | 7750/2250 |

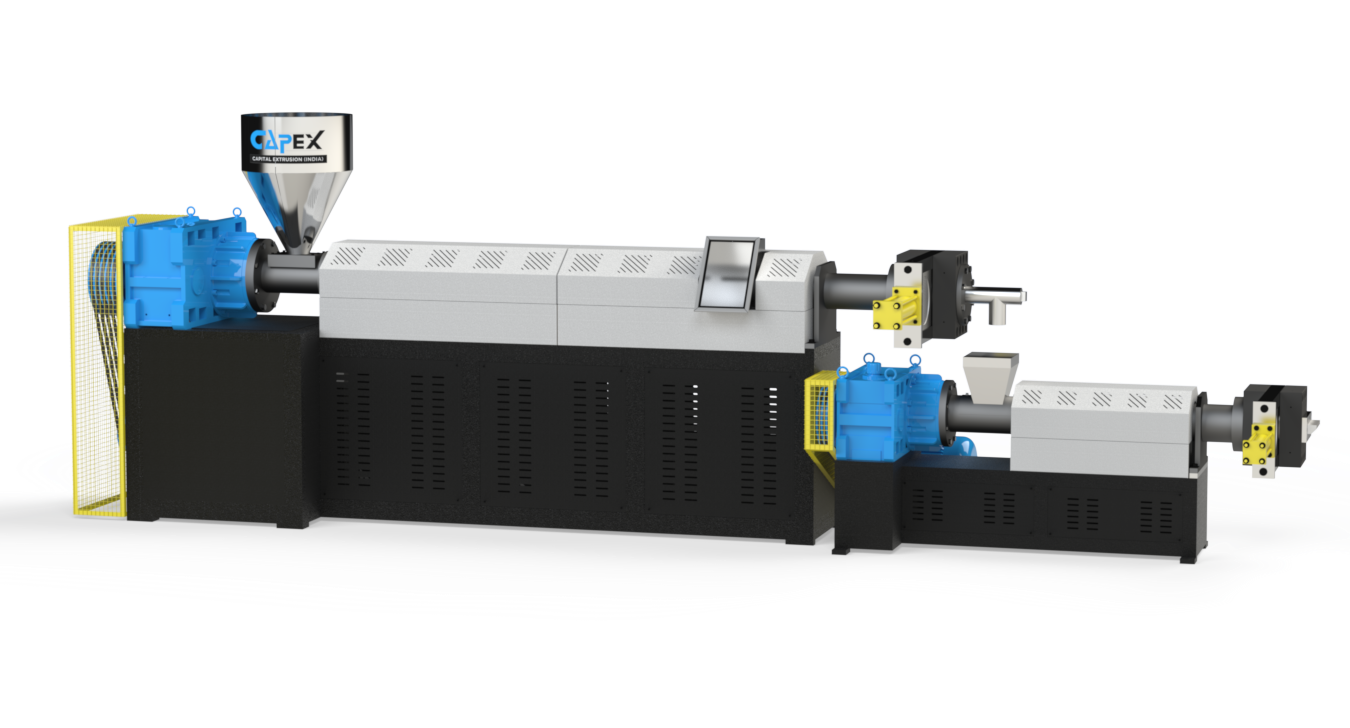

CTS Two Stage Recycling Extruder | Advanced Plastic Recycling Technology
Revolutionary Two-Stage Recycling Technology for Superior Results
Capex CTS Two Stage Recycling Extruder represents the pinnacle of plastic recycling innovation, designed specifically for processors seeking maximum efficiency & superior output quality. Our advanced system transforms contaminated plastic waste into high-value recyclate through a precision-engineered two-stage process.
Key Advantages of the CTS
Enhanced Processing Capabilities
- Superior degassing technology removes contaminants more effectively than conventional systems
- Optimized screw design for processing heavily-printed, contaminated post-consumer plastics
- Advanced filtration system ensures consistent pellet quality even with highly contaminated input materials
- Precise temperature control across both processing stages for optimal material properties
Operational Efficiency
- Reduced energy consumption by up to 25% compared to conventional recycling extruders
- Higher throughput rates – process up to 500 kg/h depending on material type
- Compact footprint requiring less factory floor space than competitive systems
Economic Benefits
- Lower cost per ton of processed material through energy and labor savings
- Higher quality output commanding premium market prices
- Reduced maintenance requirements with wear-resistant components and accessible design
- Fast ROI typically within 6-8 months of installation
Applications
- Post-consumer plastic waste (HDPE, LDPE, PP, PS, ABS)
- Heavily-printed packaging materials
- Agricultural films with soil and organic contamination
- Post-industrial plastic waste and production scraps
- Mixed plastic waste streams requiring thorough degassing
Sustainability Impact
- Reduce carbon footprint through energy-efficient processing
- Divert more plastic waste from landfills and oceans
- Produce higher-quality recyclate suitable for more applications
- Support circular economy initiatives with demonstrable environmental benefits
Expert Support
- Comprehensive operator training
- Customized process optimization
- Preventative maintenance program
- 24/7 technical support
- Spare parts availability guarantee
Request a Consultation
Contact our technical team today for a personalized assessment of how the CTS Two Stage Recycling Extruder can transform your plastic recycling operations. Demonstration facilities available for material testing.
